rotates all the tools. The wrench has a 1/2" inch hex at the top
which can allow you to extend the tooling with a socket further
if needed.
INSTRUCTIONS
Tooling length inches:
____________________________________________________
M12x1.25 spark plug repair kit p/n 6604212H tooling includes
5 inserts and sealer. This extended tooling is only needed for
a special Ford 3 valve spark plug M12x1.25x21mm taper seat
insert. Ford heads are around 6" inches deep to the spark plug
which requires longer tooling.

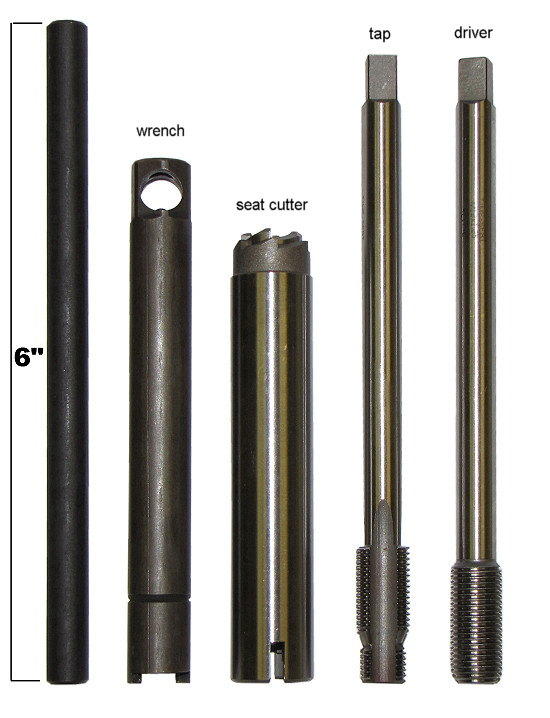

The wrench which is the second black tool 4-5/8" inches long,
rotates all the tools. The wrench has a 1/2" inch hex at the top
which can allow you to extend the tooling with a socket further
if needed.
INSTRUCTIONS
Tooling length inches:
____________________________________________________
Spark Plug Information:
PZNAR6A11H -Platinum
ZNAR6AIX-11 -Iridium
M12x1.25x21mm Taper Seat spark plug insert
repairs spark plugs in some of the 2008 Lincoln Mark LT
and 2008 Ford F-450 Super Duty Lariat, XL, XLT 6.8 V10.
2008 Ford Explorer Eddie Bauer, Limited, XLT 4.6 V8
2009 F-150 Pick ups 4.6 V8. Please verify your spark plug
size to be sure it uses the new M12x1.25 taper seat plugs.
Use Spark plug kit M12x1.25 p/n 6604212H tooling to install
special M12x1.25x21mm taper seat insert p/n 66142126
5 inserts and sealer is included in p/n 6604212H kit.
NGK PZNAR6A11H
